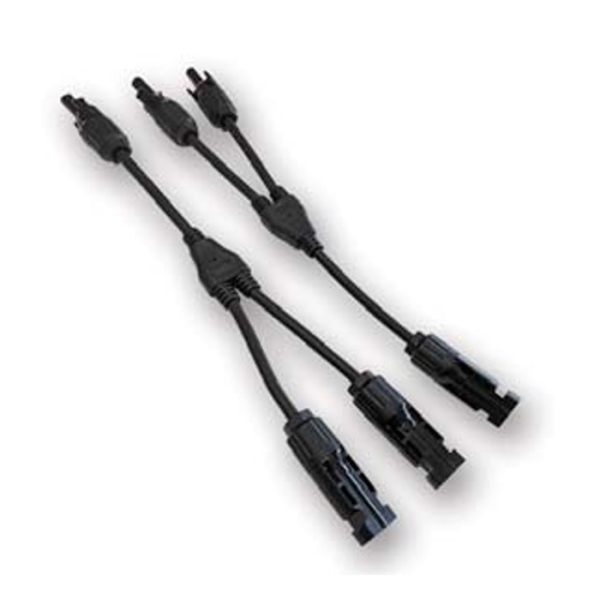

Tap-off double and Triple connectors type MC4 with flexible hose:
Model SCF/D-2TL-1500 V (product code 505030) /dual connector for parallel connection/
Model SCF/D-3TL-1500 V (product code 505040) /triple connector for parallel connection/
Functionality:
The MC4 male and female dual and triple connectors with flexible hose are an easy way to connect solar cables. These types of connectors are used to connect solar panel strings or connect extensions.
Product features:
• Quick and easy wire connection
• Insulation material: PPO
• Material: copper, tinned
• Standard: MC4 compatible
• Rated current: 30 A
• Nominal voltage: 1500 V
• Suitable cable: 2,5 mm², 4 mm², 6 mm², 10 mm² PV cable
• Temperature: -40 °C - +85 °C
• IP 67
• Class A
• Dustproof, waterproof, aging resistant, UV resistant
• Certifications: CE / ROHS / TUV
